Leader-mw Introduction to 50khz-67Ghz 1.85mm Broadband Bias Tee

The Leader-MW 50 kHz – 67 GHz Broadband Bias Tee is a precision, ultra-wideband passive component engineered to inject DC voltage or current into an active RF signal path without compromising high-frequency performance or signal integrity.

Equipped with high-frequency 1.85mm coaxial connectors on the RF ports and a dedicated DC bias port (typically SMA or solder pin), this device operates across an extensive frequency span from 50 kHz** up to 67 GHz. It features exceptionally low insertion loss, high RF-to-DC port isolation, and low VSWR throughout its operational range, preventing unwanted DC leakage into sensitive RF test equipment while suppressing RF signal degradation.

Its rugged coaxial construction provides excellent shielding, thermal stability, and minimal group delay variation, making it well-suited for demanding digital and analog applications. Typical DC handling capabilities support continuous currents up to 0.4A and voltages up to 16 V(dependent on specific model configuration).

Key Applications:
* Biasing high-speed optical modulators, photodetectors, and transceivers (PAM4, 400G/800G).
* Active RF/mmWave amplifier biasing (GaAs/GaN MMICs).
* Semiconductor characterization and high-speed pulse/digital testing.
* Wideband instrumentation, radar, and 5G/6G millimeter-wave research systems.

Leader-mw Specification

LKBT-BT67A,50khz-67Ghz 1.85mm Broadband Bias Tee

Electrical Specifications:
Item

Condition

Min.

Typ.

Max.

Units

Frequency Range

-

0.05

-

67000

MHz

Nominal Impedance

-

-

50

-

Ω

Insertion Loss

50KHz~67GHz

-

1.5

1.75

dB

VSWR

RF port

50KHz~67GHz

-

1.3

1.8

:1

RF&DC port

50KHz~120GHz

-

1.3

1.8

:1

Operating RF input Power

50KHz~67GHz

-

-

32

dBm

DC Resistance

DC to RF&DC port

-

3.1

-

Ω

DC Voltage

-

-

-

16

V

DC Current

-

-

-

0.4

A



Leader-mw Environmental Specifications
Operational Temperature -20ºC~+60ºC
Storage Temperature -50ºC~+85ºC
Humidity 100% RH at 35ºc, 95%RH at 40ºc
Leader-mw Mechanical Specifications

Item

Spec.

Units

RF/RF&DC Connectors

1.85-male/1.85-female

-

DC Connectors

SMA-female

-

Physical Dimensions(L*W*H)

40 * 13 * 13

mm

Net Weight

≈44

g

Material

Aluminium alloy&Copper

-

Surface Finish

Conductive oxidation&Gold-plated copper

-

Color

Aluminium color&Golden

-



Leader-mw Interface Information

Interface definition:

NO.

Function

Description

1

RF Port

RF signal input port

2

RF&DC Port

RF signal and DC output port

3

DC Port

DC input port

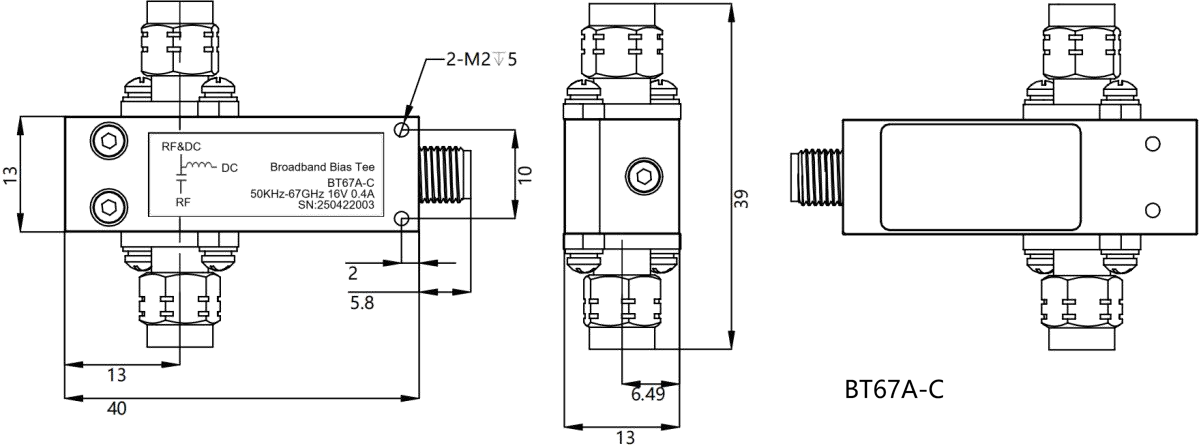

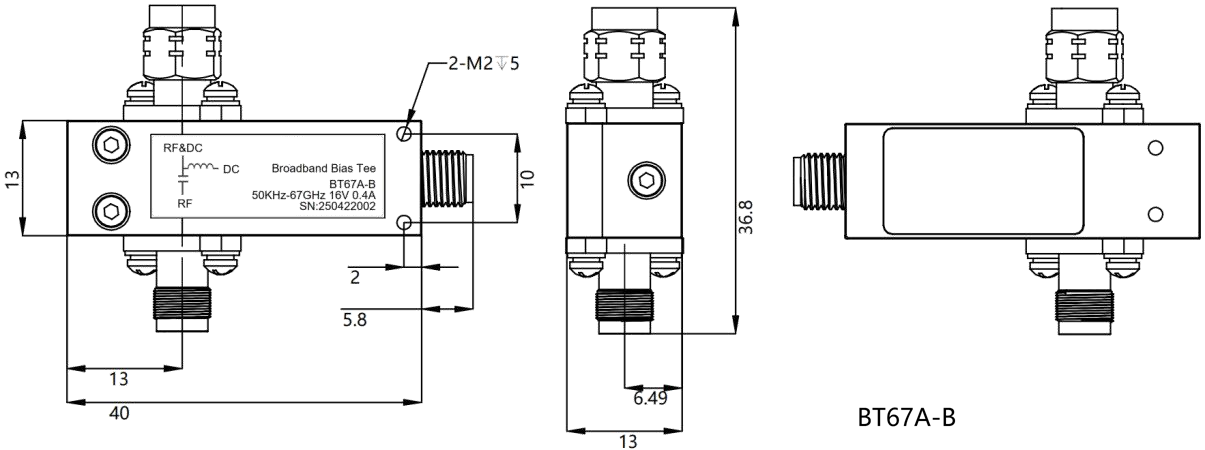

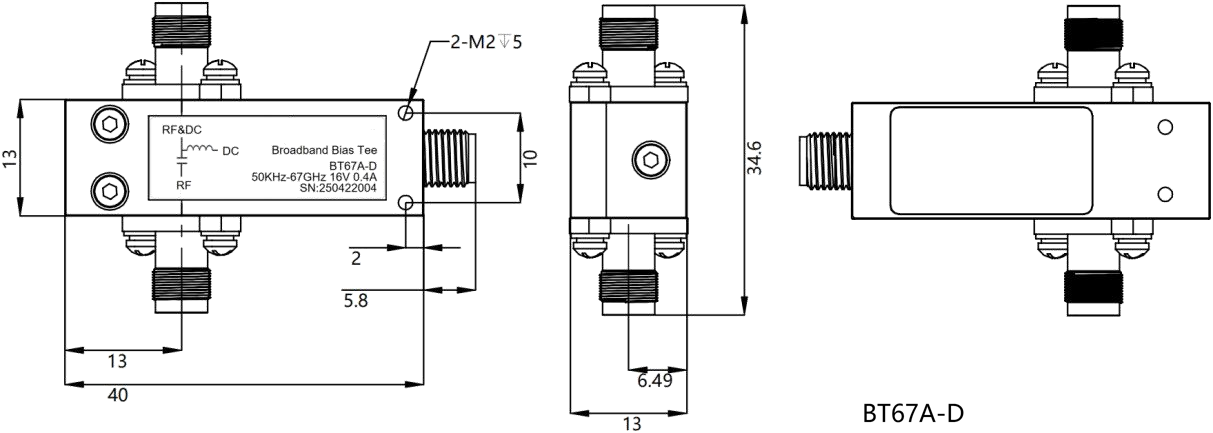

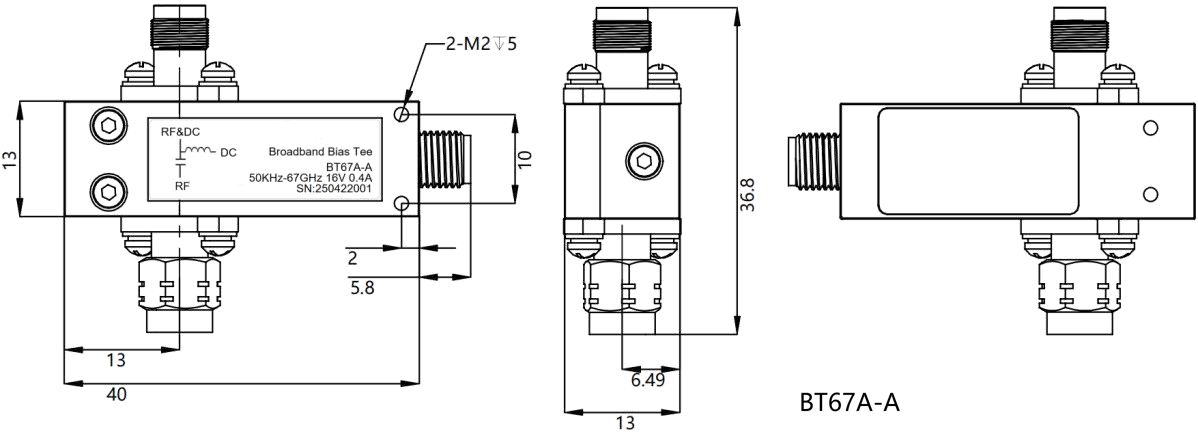

Leader-mw outline drawing

Outline Drawing:

All Dimensions in mm

Outline Tolerances ± 0.5(0.02)

Mounting Holes Tolerances ±0.2(0.008)

All Connectors: 1.85mm

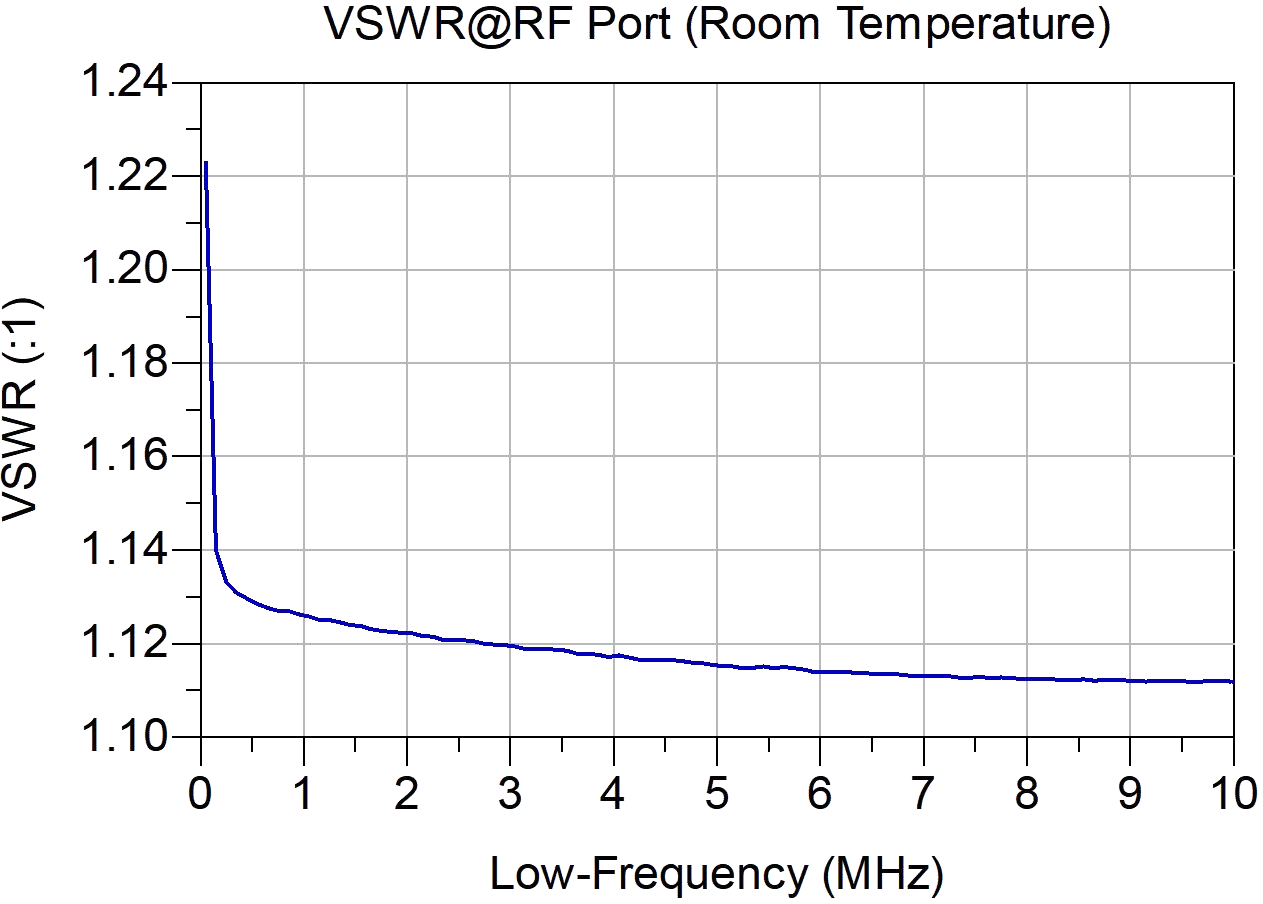

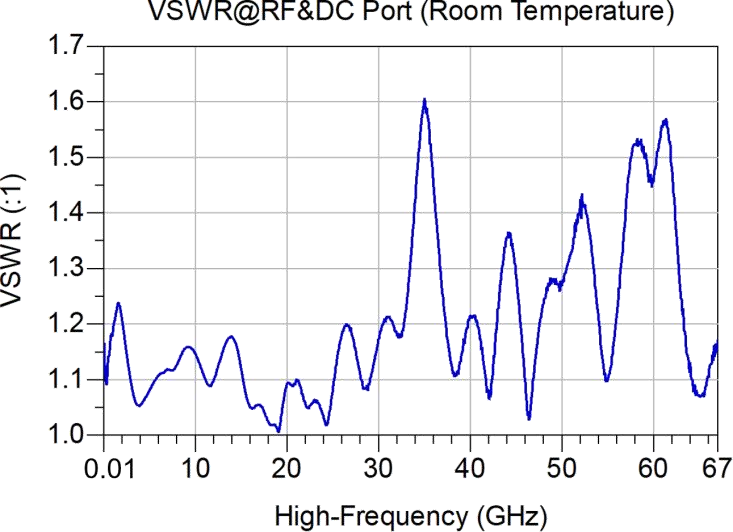

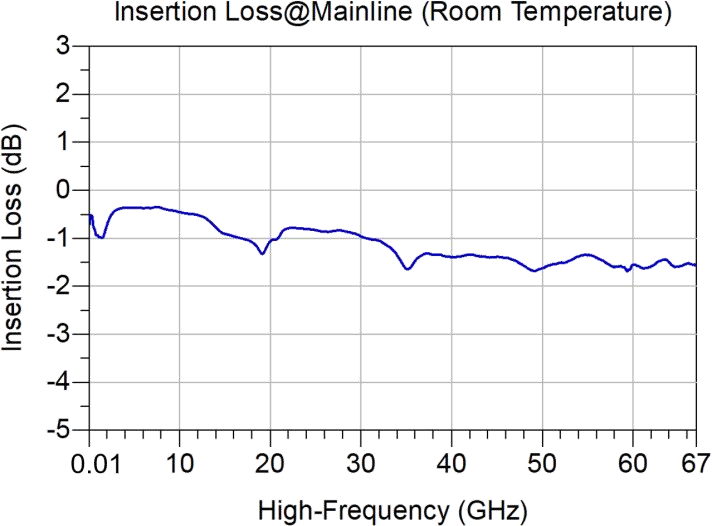

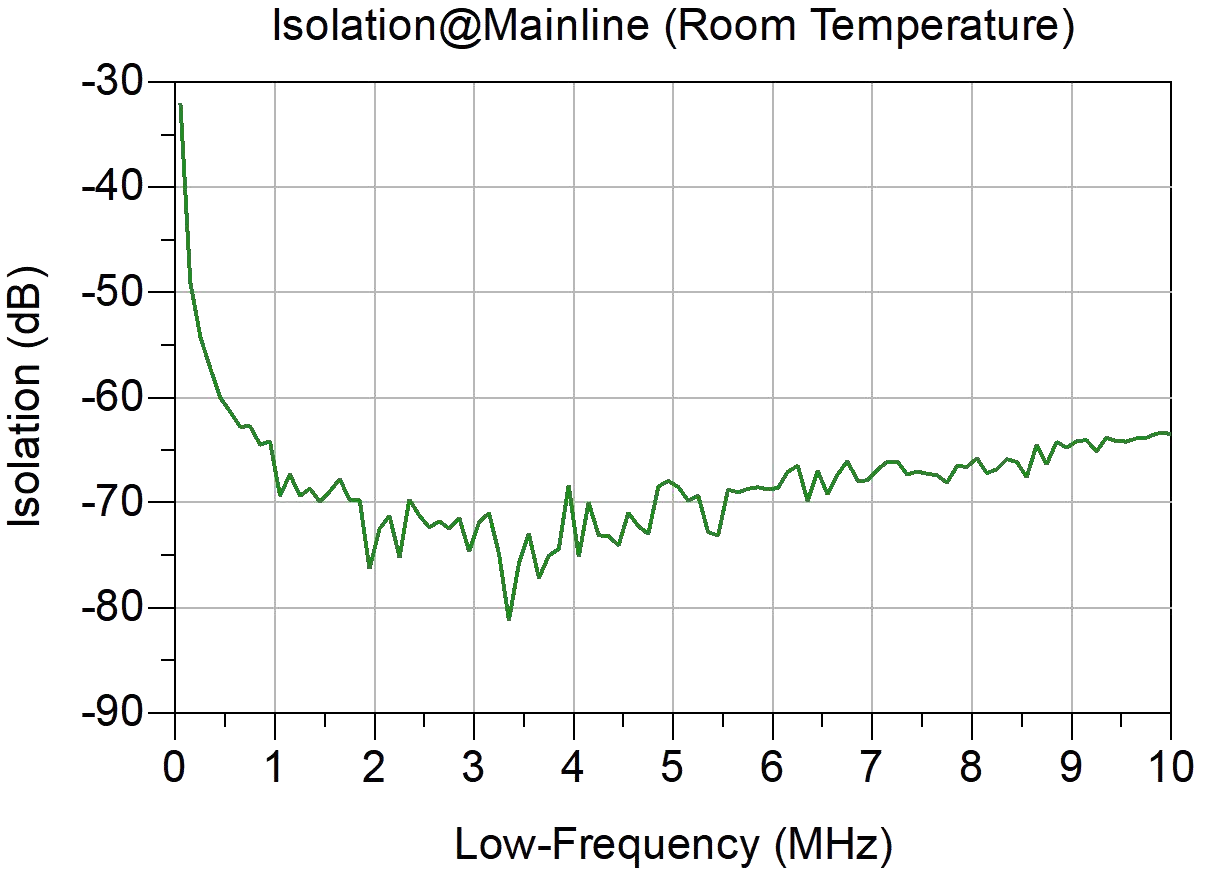

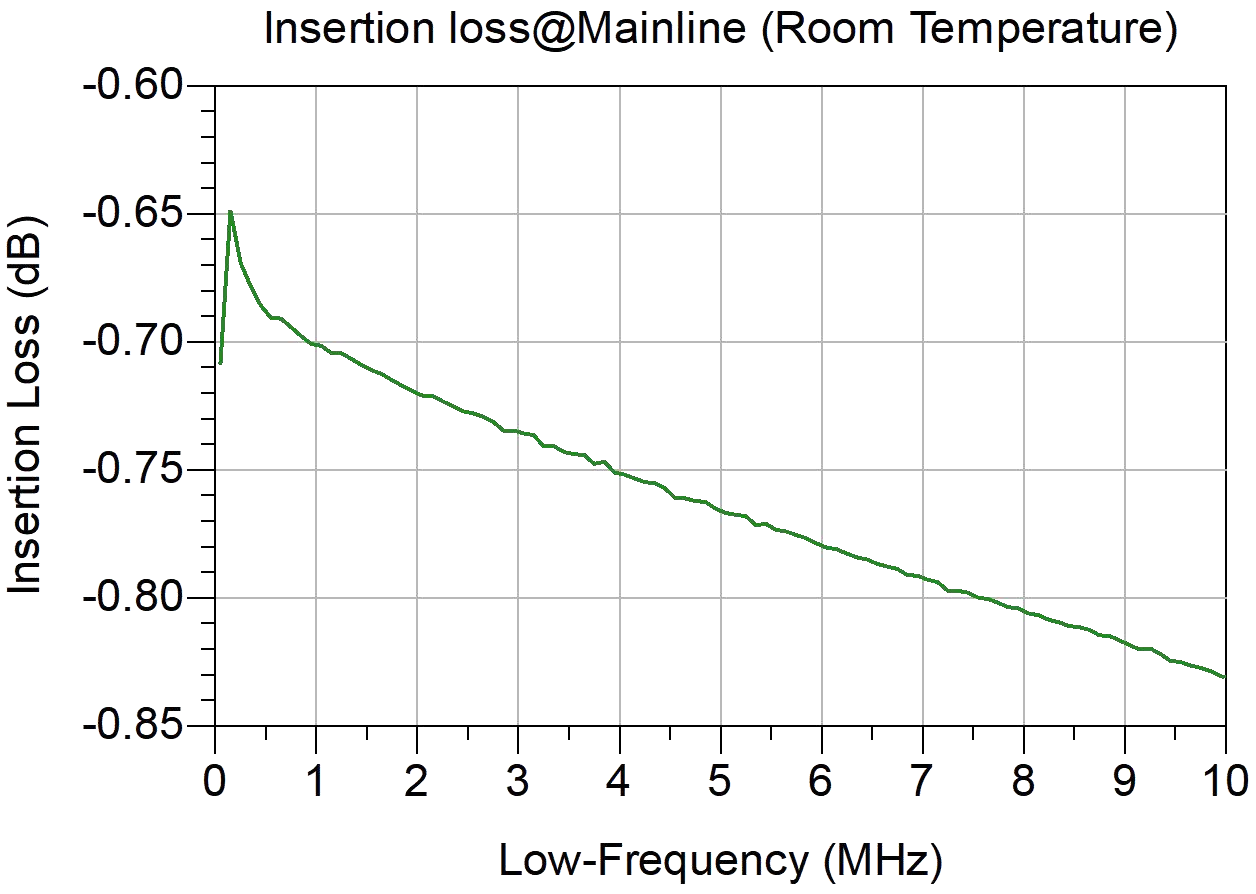

Leader-mw Test Data

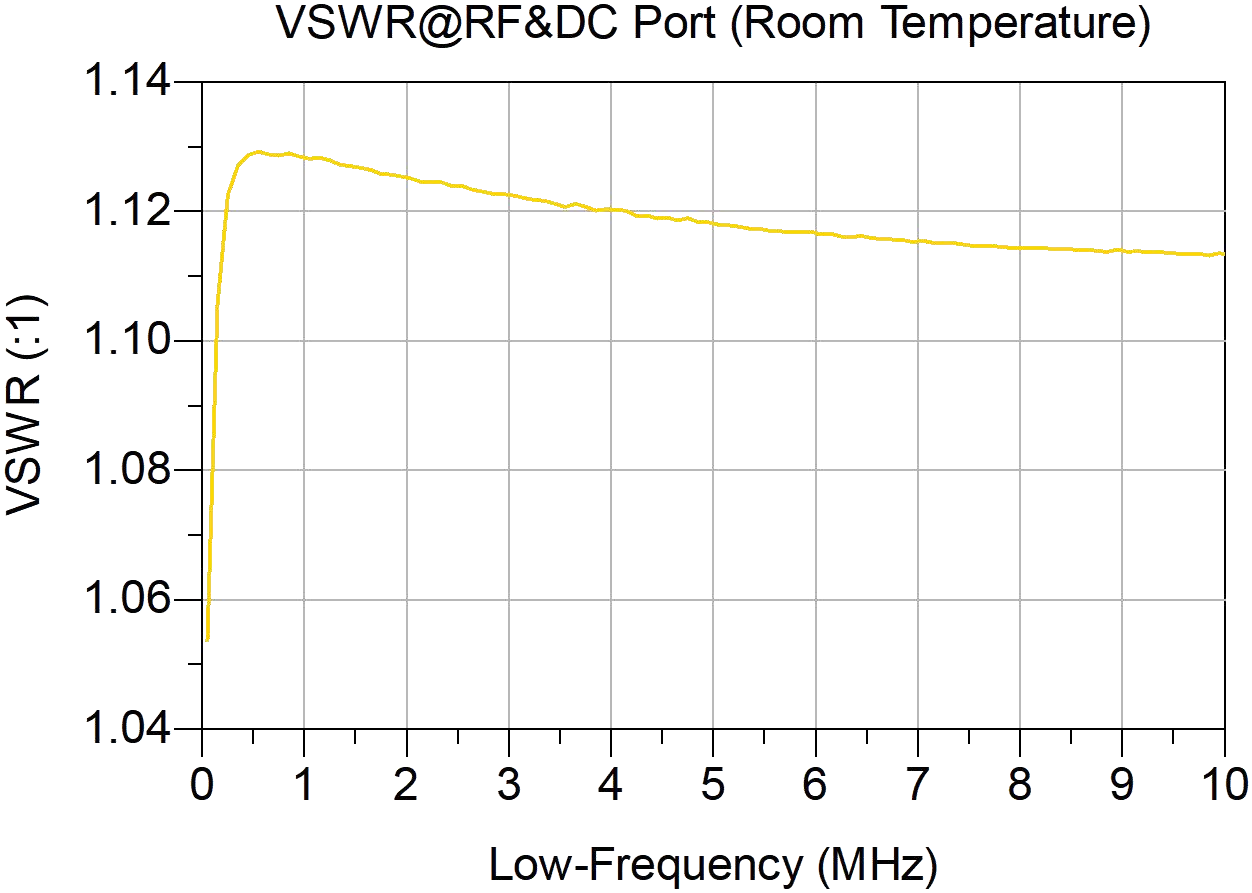

d1

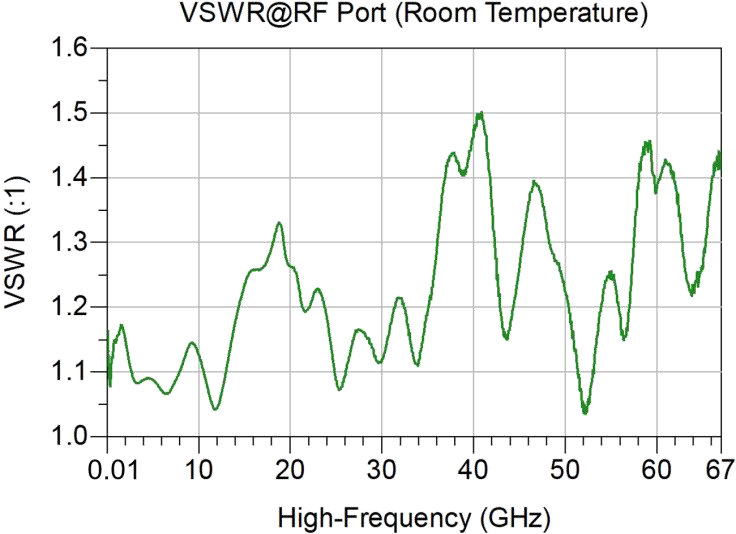

d3
d2
d4
d5
d7
d6

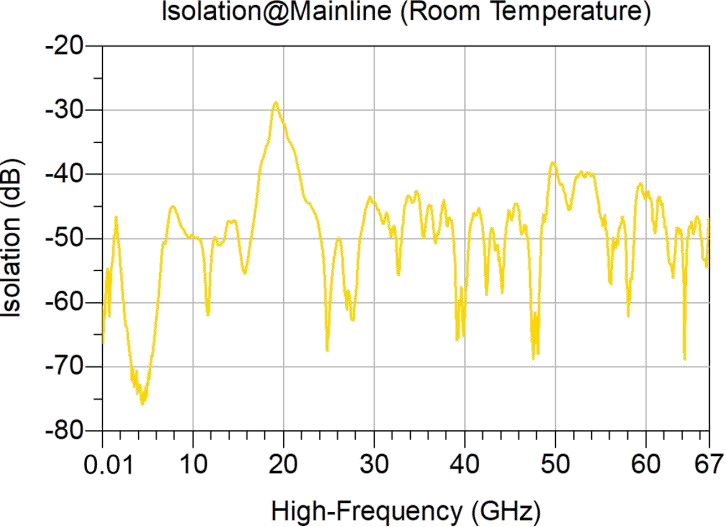

d8

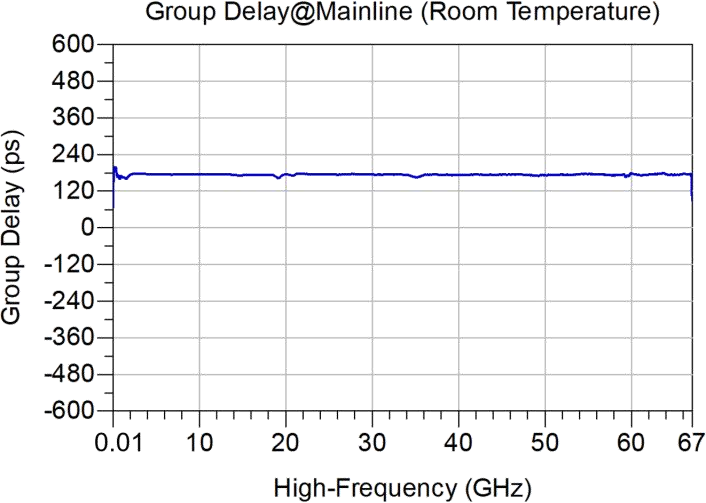

d9
