DC-67Ghz 2 Way 0 ° Resistance Power Divider combiner

LEADER-MW DC to 67 GHz 2-Way 0° Resistive Power Divider/Combiner is an ultra-broadband passive component essential for mmWave and high-speed digital systems. Its defining capability is seamless operation from DC to 67 GHz, making it ideal for 5G, radar, and wideband test equipment .

As a A DC to 67 GHz 2-Way 0° Resistive Power Divider/Combiner is an ultra-broadband passive component essential for mmWave and high-speed digital systems. Its defining capability is seamless operation from DC to 67 GHz, making it ideal for 5G, radar, and wideband test equipment .

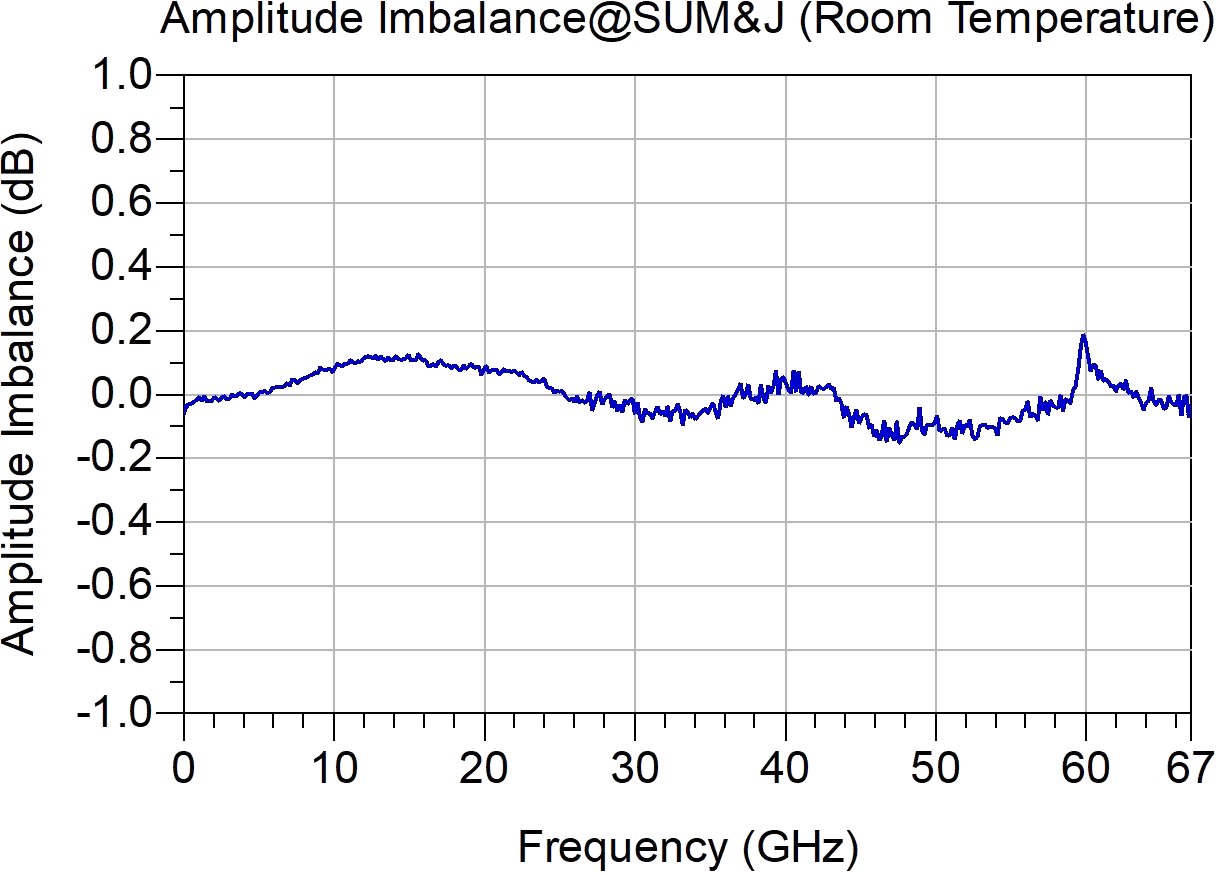

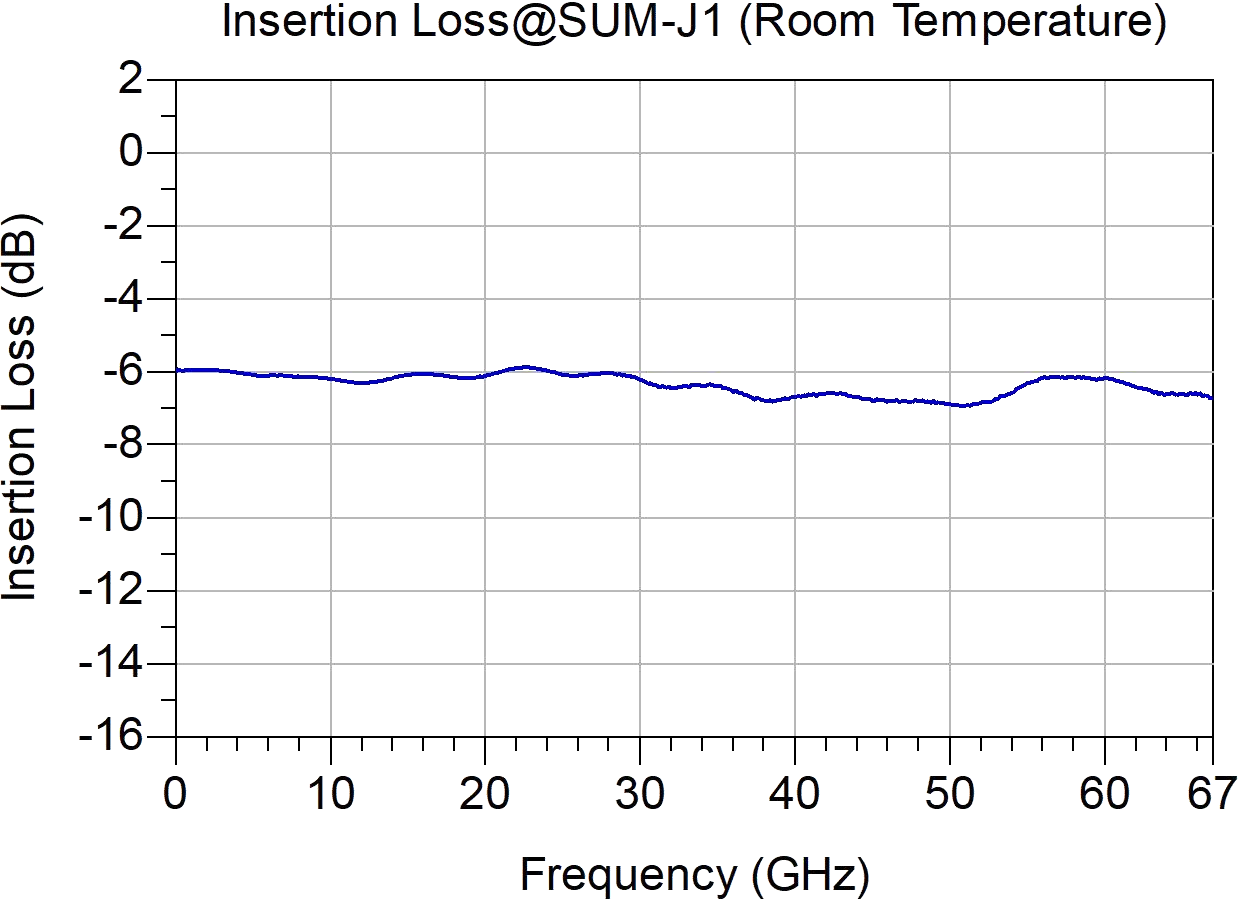

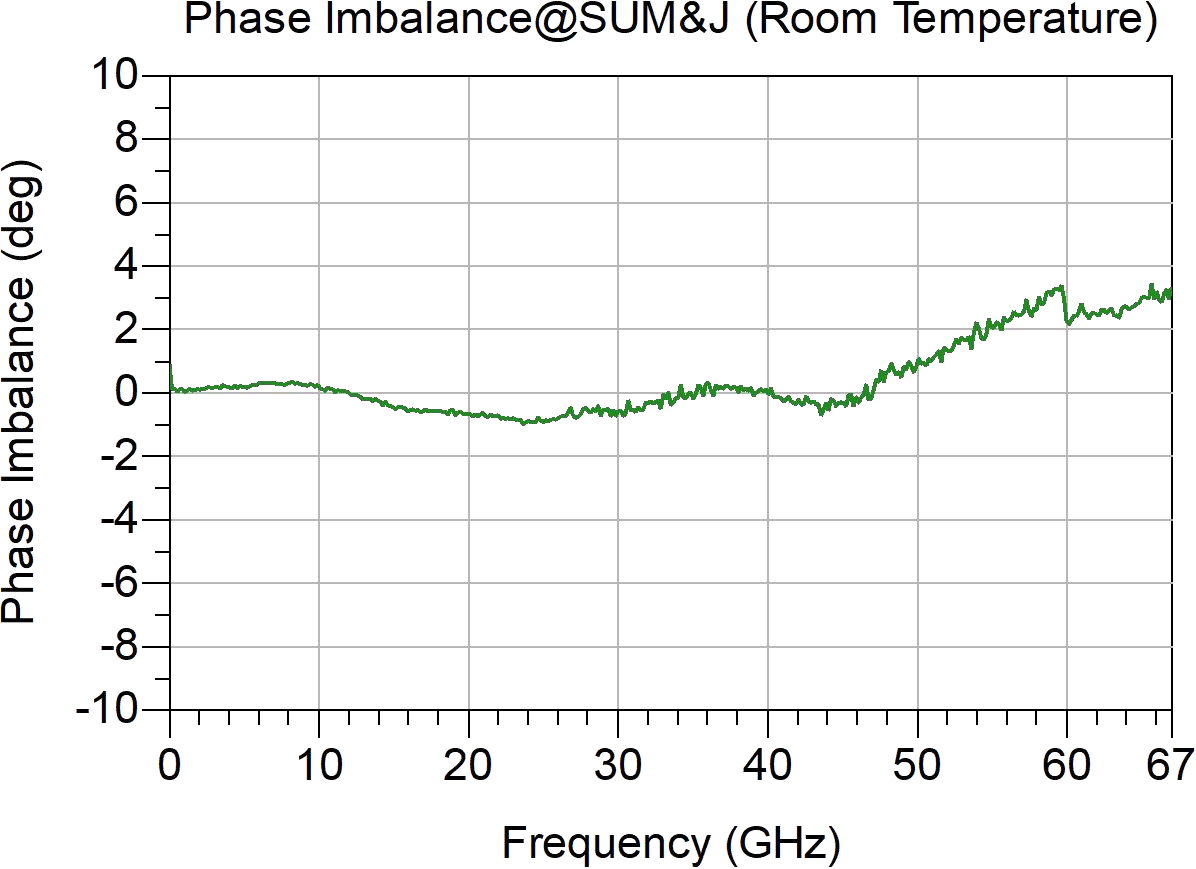

As a 2-way, 0° device, it splits an input signal into two outputs with equal amplitude and identical phase. The resistive design ensures a flat frequency response across the entire band but introduces a higher insertion loss, typically around 6.5 to 8 dB . This model supports an input power of 1 Watt (CW) .

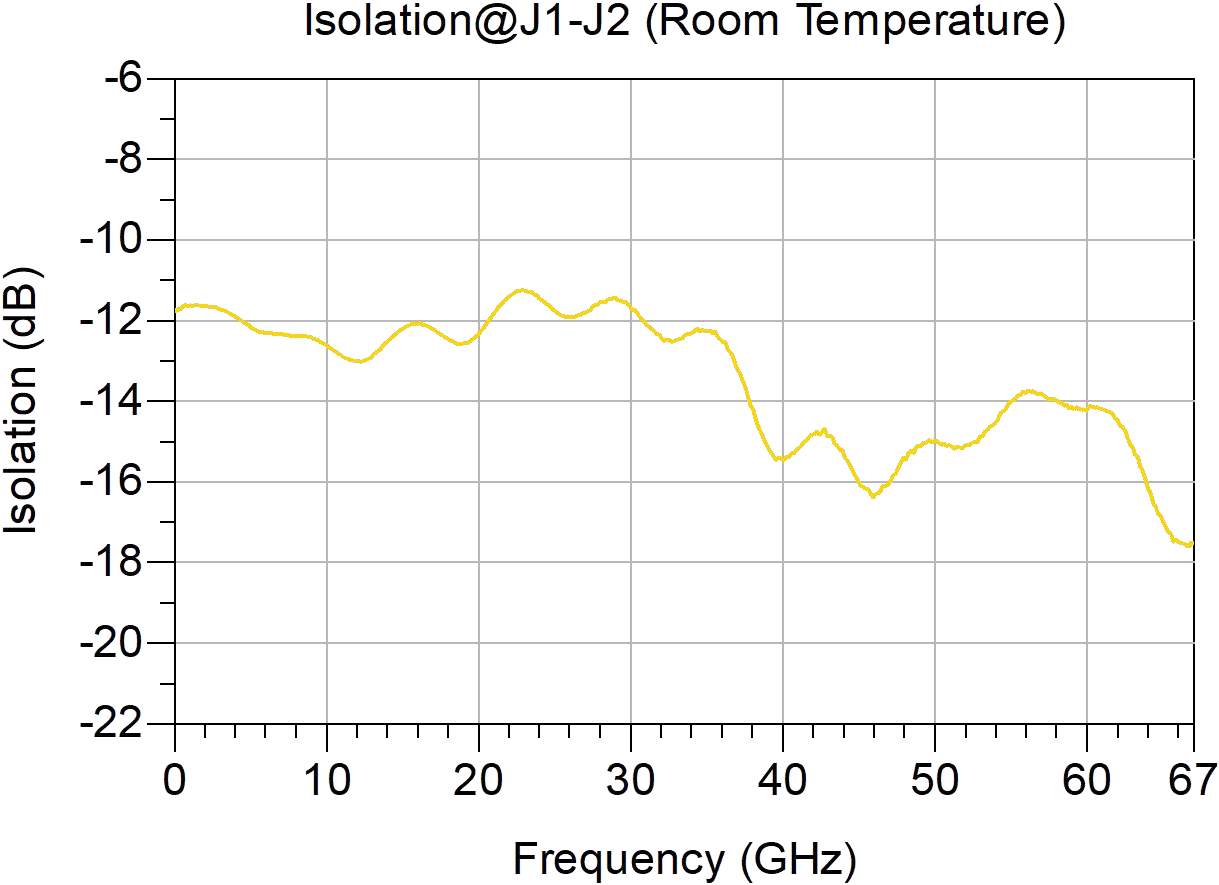

To maintain signal integrity at these frequencies, it uses precision 1.85mm connectors . While reciprocal, allowing it to function as a combiner, resistive designs are not recommended for combining high-power signals due to their relatively low isolation (typically 8-10 dB) . device, it splits an input signal into two outputs with equal amplitude and identical phase. The resistive design ensures a flat frequency response across the entire band but introduces a higher insertion loss, typically around 6.5 to 8 dB . This model supports an input power of 1 Watt (CW) .

To maintain signal integrity at these frequencies, it uses precision 1.85mm connectors . While reciprocal, allowing it to function as a combiner, resistive designs are not recommended for combining high-power signals due to their relatively low isolation (typically 8-10 dB) .
