1.85mm 2w 67Ghz rf load termination

Type:LXFZ2-1.85

Frquency:DC-67Ghz

Power:2w

connecter:1.85


Product Detail

Product Tags

Leader-mw Introduction to 1.85mm 2w 67Ghz rf load termination

The Leader-MW 1.85mm 2W 67GHz RF Load Termination is a precision millimeter-wave coaxial component engineered for high-performance 50Ω RF and microwave systems. Operating seamlessly across a broadband frequency range from DC to 67GHz, this termination is specifically designed for 5G/6G research, radar systems, satellite communications, and high-frequency laboratory test and measurement.

Equipped with standard 1.85mm connectors (available in male and female configurations), it offers an average continuous wave (CW) power handling rating of 2W. The load incorporates high-precision thin-film resistive elements to deliver outstanding electrical stability, low signal reflection, and an optimized Voltage Standing Wave Ratio (VSWR), typically maintaining VSWR:1.3:1 across the full operating bandwidth.

Mechanically, it features a rugged, passivated stainless steel body with gold-plated beryllium copper center contacts, ensuring high phase stability, excellent thermal dissipation, and extended durability over repeated mating cycles.

Whether deployed to absorb transmitted power, terminate unused ports to eliminate reflections, or protect sensitive RF instrumentation in high-frequency test benches, Leader-MW's 1.85mm 67GHz load termination provides reliable accuracy and signal integrity for demanding mmWave applications.

Leader-mw Specification
Item Specification
Frequency range DC ~ 67GHz
Impedance (Nominal) 50Ω
Power rating 2Watt@25℃
Peak Power(5 μs) 20W
V.S.W.R (Max) 1.3
Connector type 1.85
dimension Φ9*12.3mm
Temperature Range -55℃~ 125℃
Weight 10g
Colour
StainlessSteelPassivation



Leader-mw Mechanical Specifications
Housing
StainlessSteelPassivation
Connecter Contact
Male:Gold-platedbrass,
Female:BerylliumBronze
Rohs compliant
Insulators
PEI

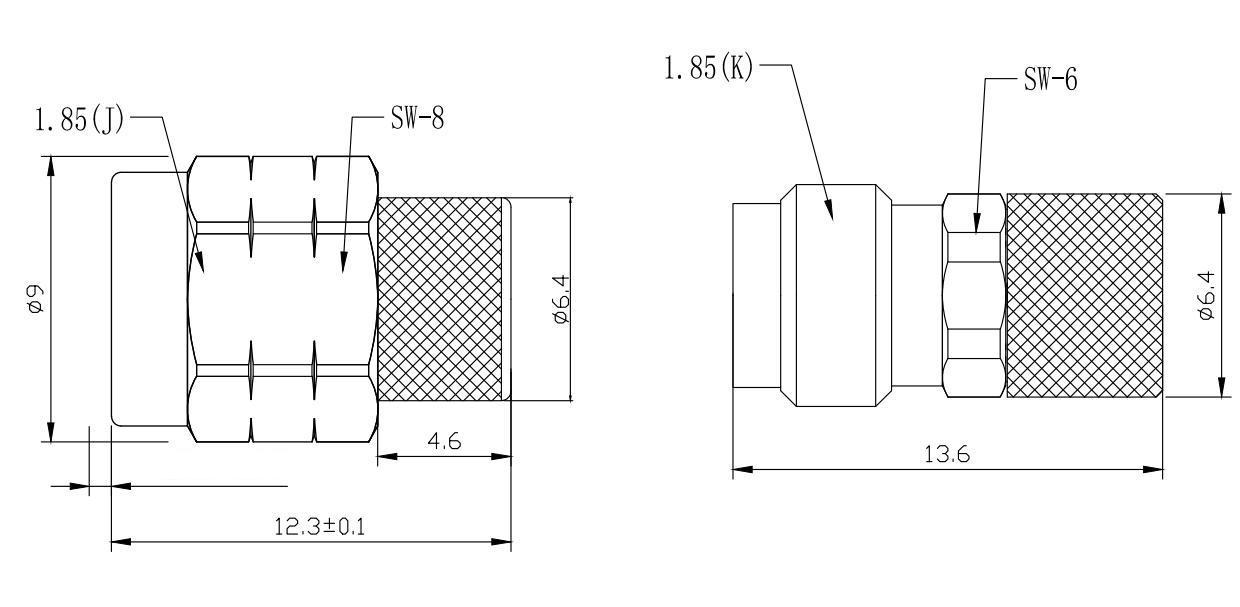

Leader-mw Outline drawing

Outline Drawing:

All Dimensions in mm

Outline Tolerances ± 0.5(0.02)

Mounting Holes Tolerances ±0.2(0.008)

All Connectors: 1.85

1.85-0
