SMA male to SMA male RF Coaxial adapter Straight
| Leader-mw | Introduction to SMA-KK straight RF Adapter |
Engineered for precision in high-frequency applications, this stainless steel SMA male to male straight adapter SMA-KK provides a robust and reliable coaxial connection. Its primary function is to interface between SMA male andmale connectors, effectively extending cable assemblies or adapting test equipment ports with minimal signal disruption.
Constructed from premium stainless steel, the adapter offers exceptional durability, corrosion resistance, and superior shielding to protect signal integrity. It is designed to perform impeccably across a wide frequency spectrum from DC to 26.5 GHz, making it an essential component for RF testing, telecommunications, radar systems, and aerospace technology.
| Leader-mw | specification |
| No. | Parameter | Minimum | Typical | Maximum | Units |
| 1 | Frequency range |
DC |
- |
26.5 |
GHz |
| 2 | Insertion Loss |
|
dB |
||
| 3 | VSWR | 1.2 | |||
| 4 | Impedance | 50Ω | |||
| 5 | Connecter |
SMA-male |
|||
| 6 | Preferred finish colour |
Stainless steel passivation |
|||
| Leader-mw | Environmental Specifications |
| Operational Temperature | -30ºC~+60ºC |
| Storage Temperature | -50ºC~+85ºC |
| Vibration | 25gRMS (15 degrees 2KHz) endurance, 1 hour per axis |
| Humidity | 100% RH at 35ºc, 95%RH at 40ºc |
| Shock | 20G for 11msec half sine wave,3 axis both directions |
| Leader-mw | Mechanical Specifications |
| Housing | stainless steel 303F Passivated |
| Insulators | PEI |
| Contact: | gold plated beryllium bronze |
| Rohs | compliant |
| Weight | 30g |

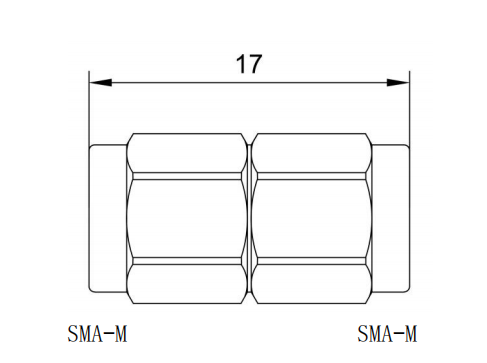

Outline Drawing:
All Dimensions in mm
Outline Tolerances ± 0.5(0.02)
Mounting Holes Tolerances ±0.2(0.008)
All Connectors: SMA-male
| Leader-mw | Test Data |
