SMA Female to SMA male RF Coaxial adapter
| Leader-mw | Introduction to SMA -JK Adapter |
Stainless Steel SMA Female to Male Adapter, DC to 26.5 GHz
This high-performance SMA female to SMA male coaxial adapter is engineered for precision and reliability in demanding RF and microwave applications. Constructed from durable, corrosion-resistant stainless steel, it ensures excellent electrical performance and mechanical longevity, even with frequent connections and disconnections.
The adapter's key feature is its guaranteed optimal performance across a broad frequency range from DC to 26.5 GHz. This makes it an indispensable component in test benches, communication systems, radar, and any setup requiring a seamless gender-changing interface between SMA-equipped cables and devices. The stainless steel body provides superior shielding against electromagnetic interference (EMI), safeguarding signal integrity.
| Leader-mw | specification SMA-JK |
| No. | Parameter | Minimum | Typical | Maximum | Units |
| 1 | Frequency range |
DC |
- |
26.5 |
GHz |
| 2 | Insertion Loss |
dB |
|||
| 3 | VSWR | 1.2 | |||
| 4 | Impedance | 50Ω | |||
| 5 | Connecter |
SMA Femal ,SMA Male |
|||
| 6 | Preferred finish colour |
Stainless steel passivation |
|||
| Leader-mw | Environmental Specifications |
| Operational Temperature | -30ºC~+60ºC |
| Storage Temperature | -50ºC~+85ºC |
| Vibration | 25gRMS (15 degrees 2KHz) endurance, 1 hour per axis |
| Humidity | 100% RH at 35ºc, 95%RH at 40ºc |
| Shock | 20G for 11msec half sine wave,3 axis both directions |
| Leader-mw | Mechanical Specifications |
| Housing | stainless steel 303F Passivated |
| Insulators | PEI |
| Contact: | gold plated beryllium bronze |
| Rohs | compliant |
| Weight | 30g |

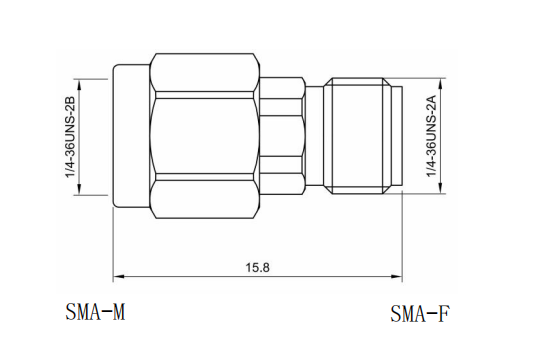

Outline Drawing:
All Dimensions in mm
Outline Tolerances ± 0.5(0.02)
Mounting Holes Tolerances ±0.2(0.008)
All Connectors: SMA Female ,SMA Male

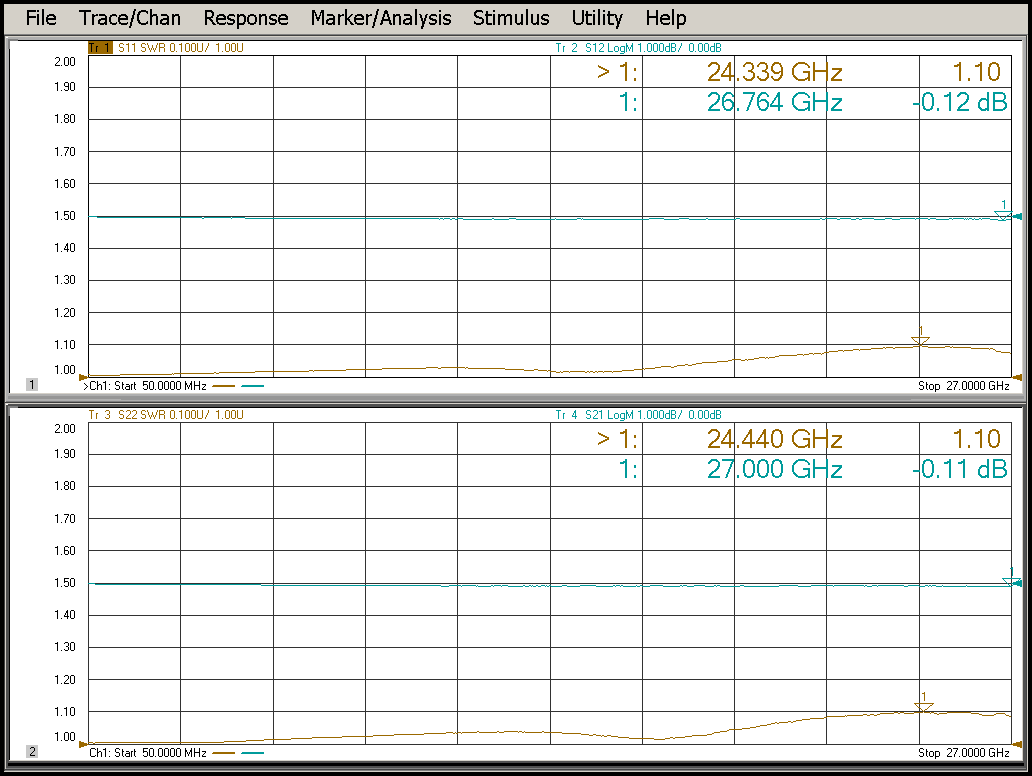

| Leader-mw | Test Data |
