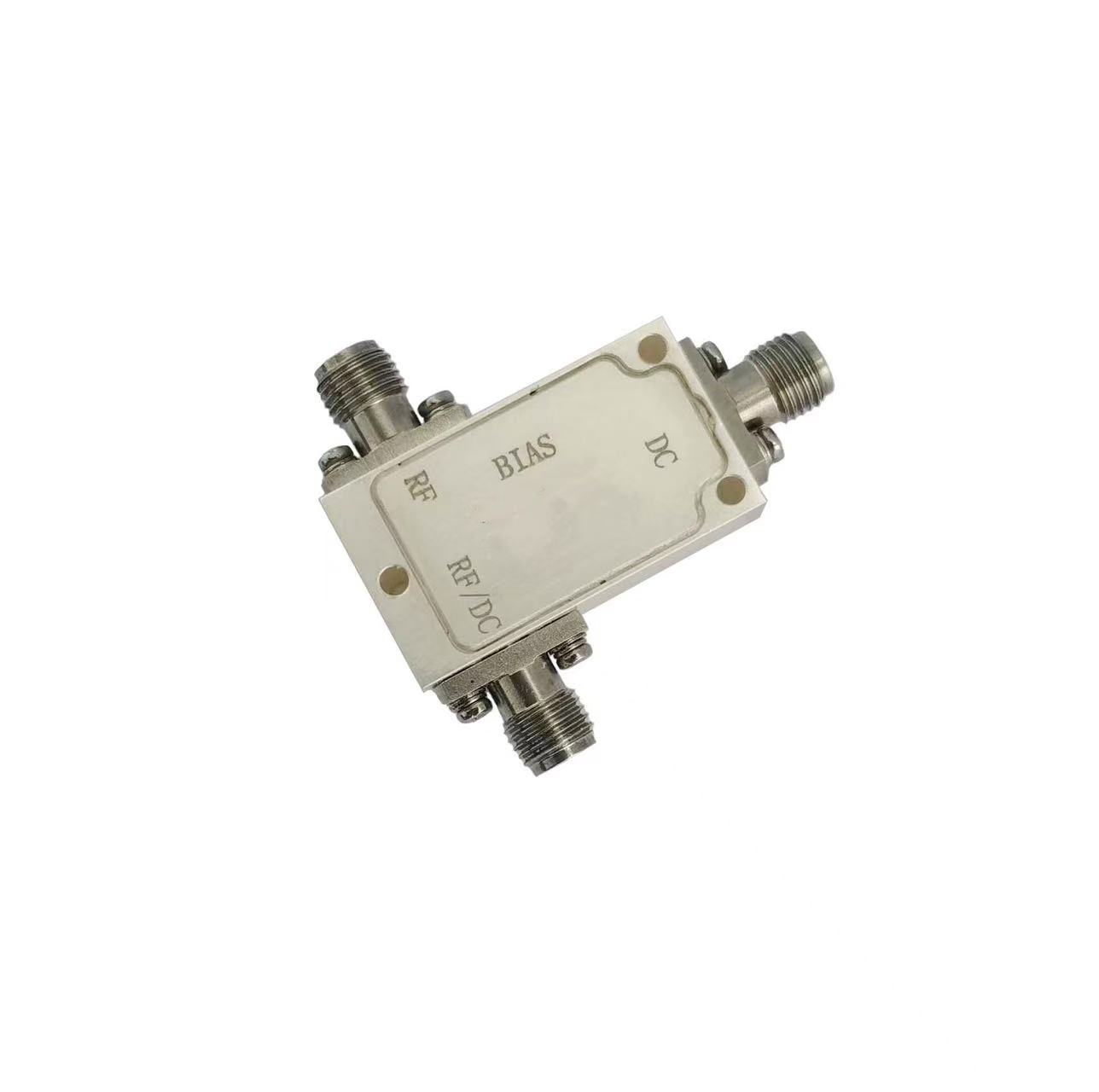

LKBT-0.02/8-S rf bais tee 20-8000Mhz

Leader-mw 20-8000 MHz Bias Tee with 1W power handling is an indispensable passive component for RF and microwave systems. Operating across a wide frequency spectrum from 20 MHz to 8 GHz, it is engineered to inject a DC bias current or voltage onto a high-frequency signal path while simultaneously blocking that DC from affecting sensitive AC-coupled equipment.

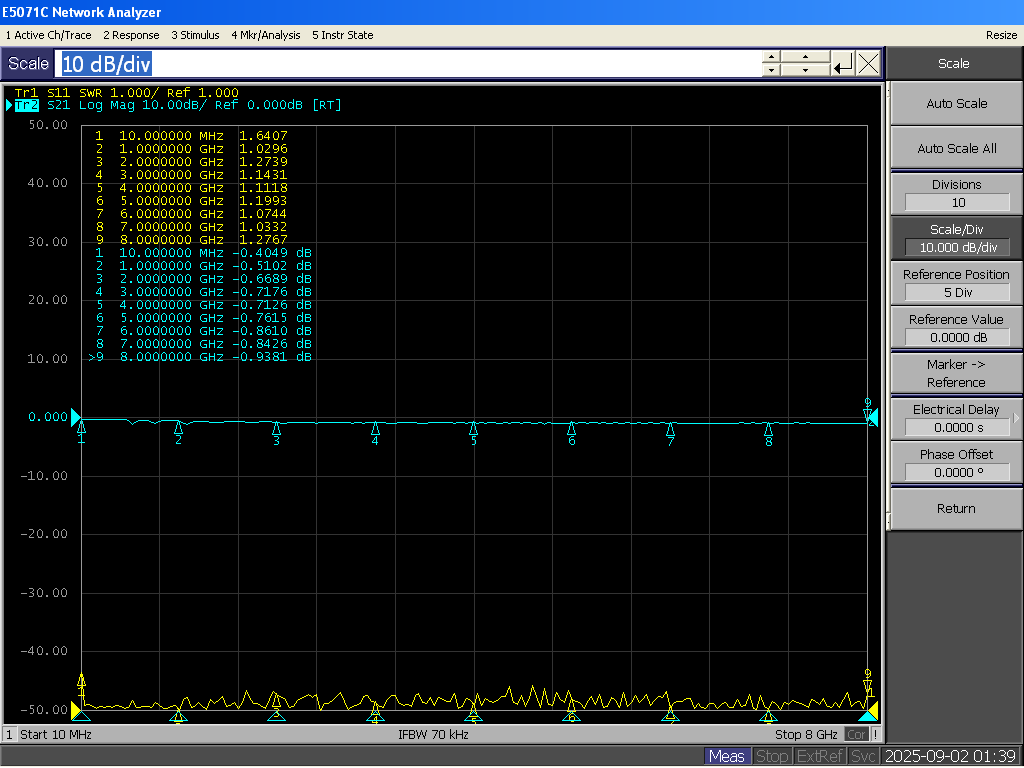

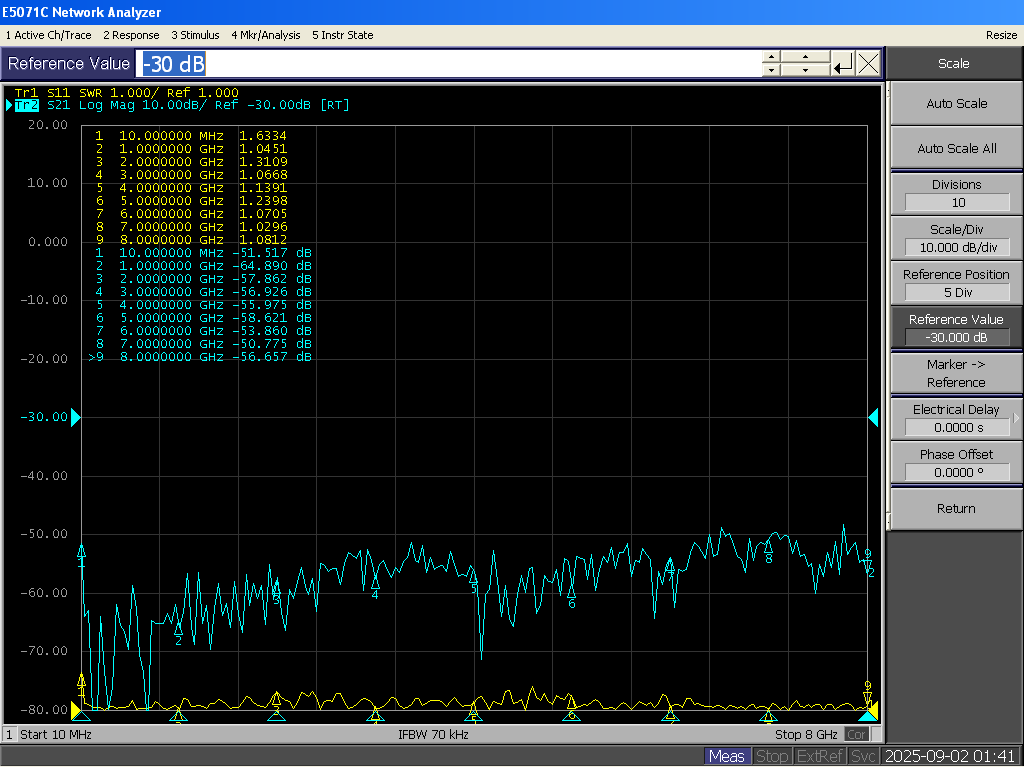

Its primary function is to power active devices like amplifiers and bias networks for antennas directly through the signal cable, eliminating the need for separate power lines. This model's robust 1-watt power rating ensures reliable performance with high-power signals, maintaining signal integrity with low insertion loss in the RF path and high isolation between the DC and RF ports.

Ideal for applications in telecommunications, test and measurement setups, and radar systems, this bias tee offers a compact, efficient, and reliable solution for integrating power and signal in a single coaxial line, simplifying system design and enhancing performance.
