ANT00388PO 0. 4GHz~8G Hand-Held Log-Periodic Antenna

Frequency:ANT00388PO

400MHz~8000MHz

Gain, Typ (dB):≥5

Polarization:Linear

3dB Beamwidth, E-Plane, Min (Deg.):E_3dB:≥55

3dB Beamwidth,E-Plane, Max (Deg.):H_3dB:≥60

VSWR: ≤2.0: 1                              Impedance, (Ohm):50

Connecter:SMA-50K                  Power:50W

Operating Temperature Range:-40˚C ~+85˚C

Outline:Unit: 465×320×26(mm)


Product Detail

Product Tags

Leader-mw Introduction to 0.4GHz~8G Hand-Held Log-Periodic Antenna:

Leader-mw Ant00388po Hand-Held Log-Periodic Antenna: Compact Power for Ultra-Wideband Needs

The Ant00388po redefines portability in high-performance antennas, merging a small, ergonomic handheld design with exceptional ultra-wideband capabilities. Covering an impressive frequency range of 0.4GHz to 8GHz, it eliminates the need for multiple antennas, seamlessly adapting to diverse scenarios—from amateur radio operations and field signal testing to IoT device calibration and emergency communication setups.

As a log-periodic antenna, it delivers consistent gain and low standing wave ratio (SWR) across its entire bandwidth, ensuring stable signal reception and transmission even in dynamic environments. Its compact form factor, tailored for handheld use, makes it easy to carry in toolkits or backpacks, ideal for on-site engineers, field technicians, or radio enthusiasts who prioritize mobility without compromising performance.

Durable and lightweight, the Ant00388po balances practicality with reliability, serving as a versatile solution for anyone needing a single, high-quality antenna to handle a broad spectrum of frequency-dependent tasks.

Leader-mw Specification

ANT00388PO 0. 4GHz~8G Hand-Held Log-Periodic Antenna

No. Parameter Minimum Typical Maximum Units
1 Frequency range

0.4

-

8

GHz

2 Gain

5

dBi

3 Polarization

liner polarization

4 3dB Beam width, E-Plane

55

˚ degree
5 3dB Beam width, H-Plane

60

˚ degree
6 VSWR

-

2.0

-

7 Axial ratio

dB

8 weight

1.2KG

9 Outline:

465×320×26(mm)

10 Impedance

              50

Ω

11 Connecter

SMA-K

12 surface                                 Green

Remarks:

Power rating is for load vswr better than 1.20:1

Leader-mw Environmental Specifications
Operational Temperature -30ºC~+60ºC
Storage Temperature -50ºC~+85ºC
Vibration 25gRMS (15 degrees 2KHz) endurance, 1 hour per axis
Humidity 100% RH at 35ºc, 95%RH at 40ºc
Shock 20G for 11msec half sine wave,3 axis both directions

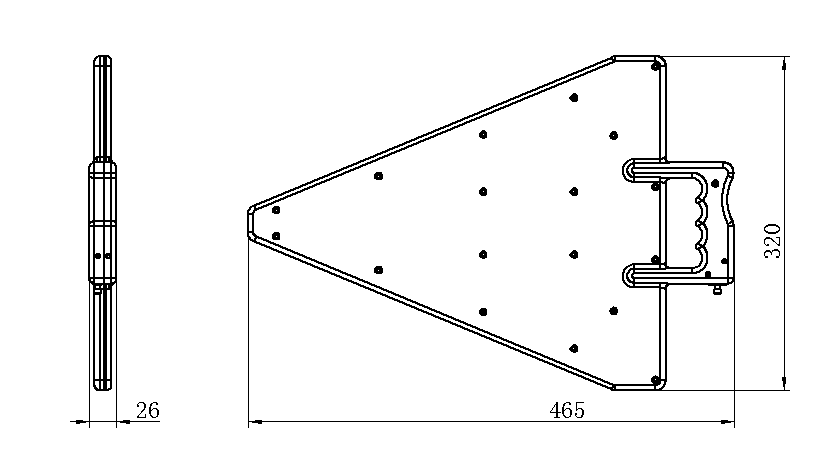

Leader-mw Outline Drawing

Outline Drawing:

All Dimensions in mm

Outline Tolerances ± 0.5(0.02)

Mounting Holes Tolerances ±0.2(0.008)

All Connectors: SMA-Female

13

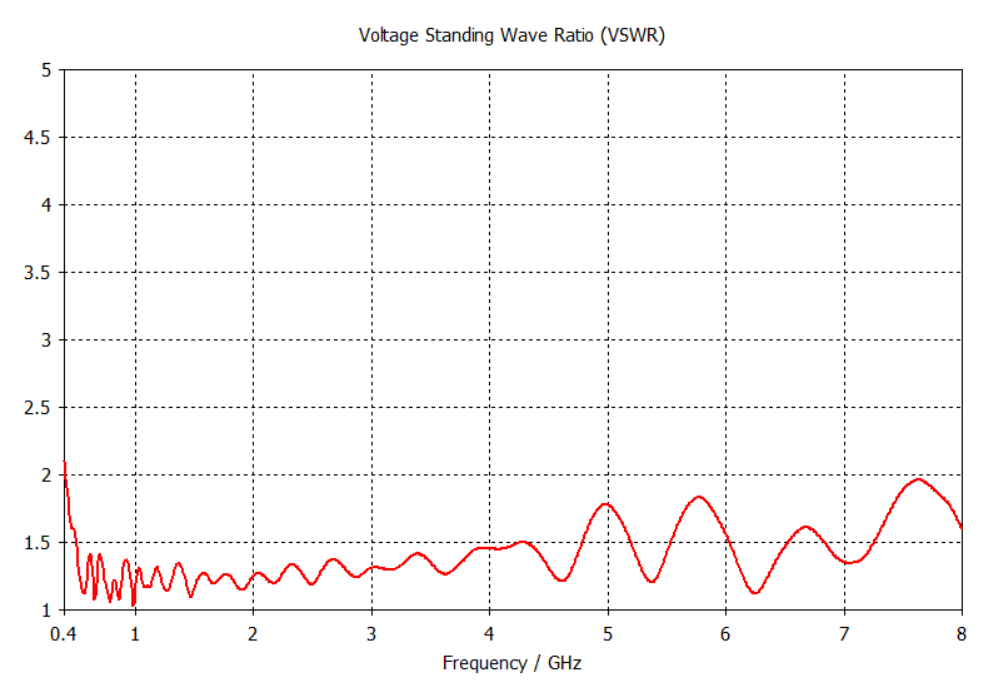

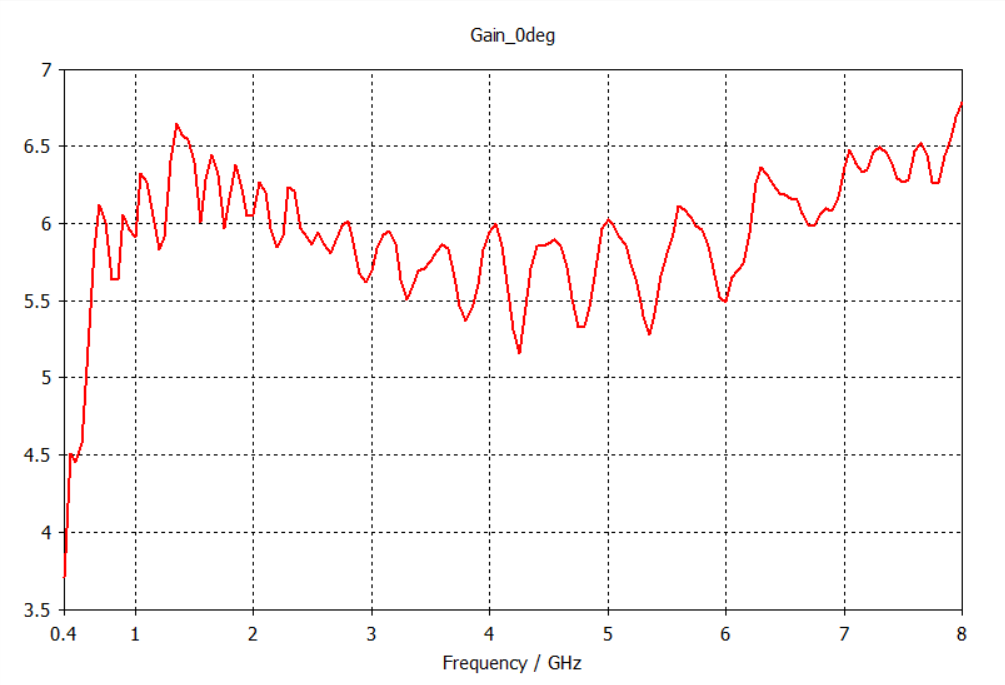

Leader-mw simulated chart
VSWR
GAIN

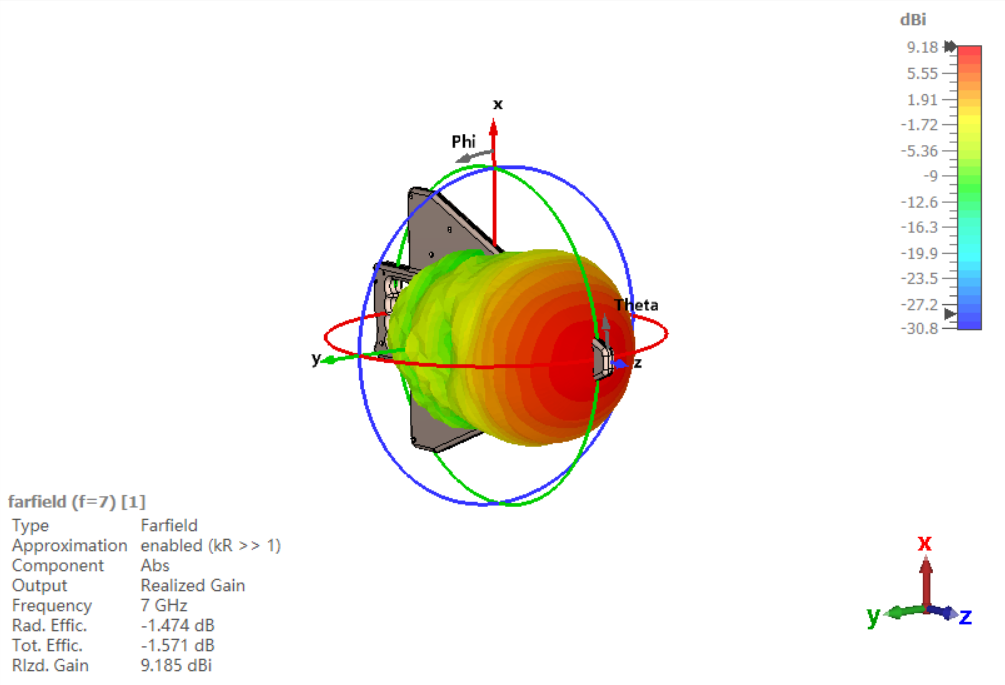

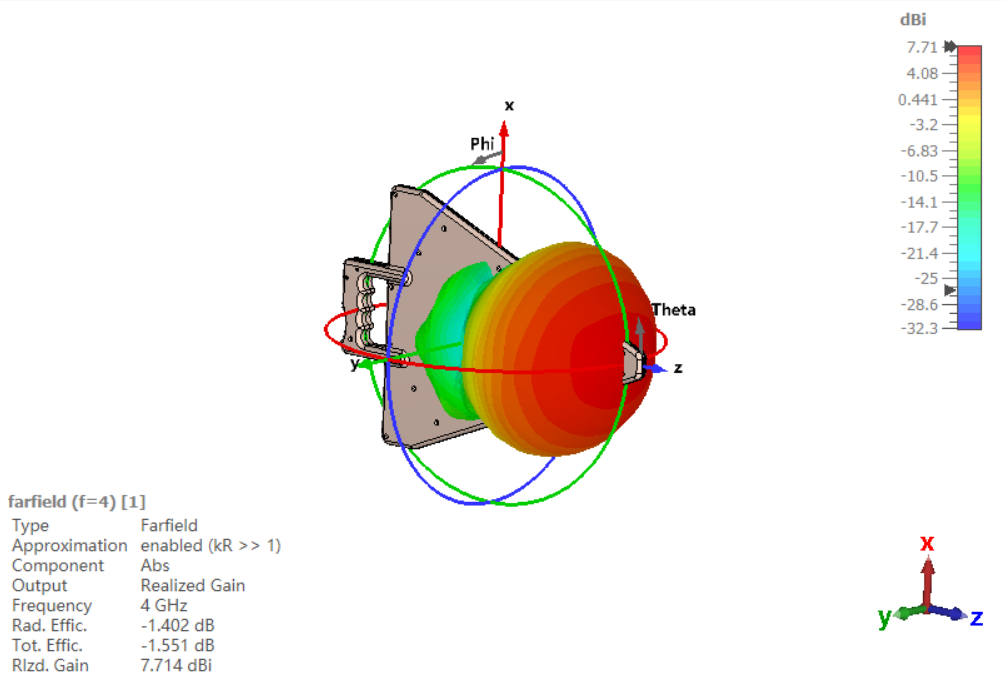

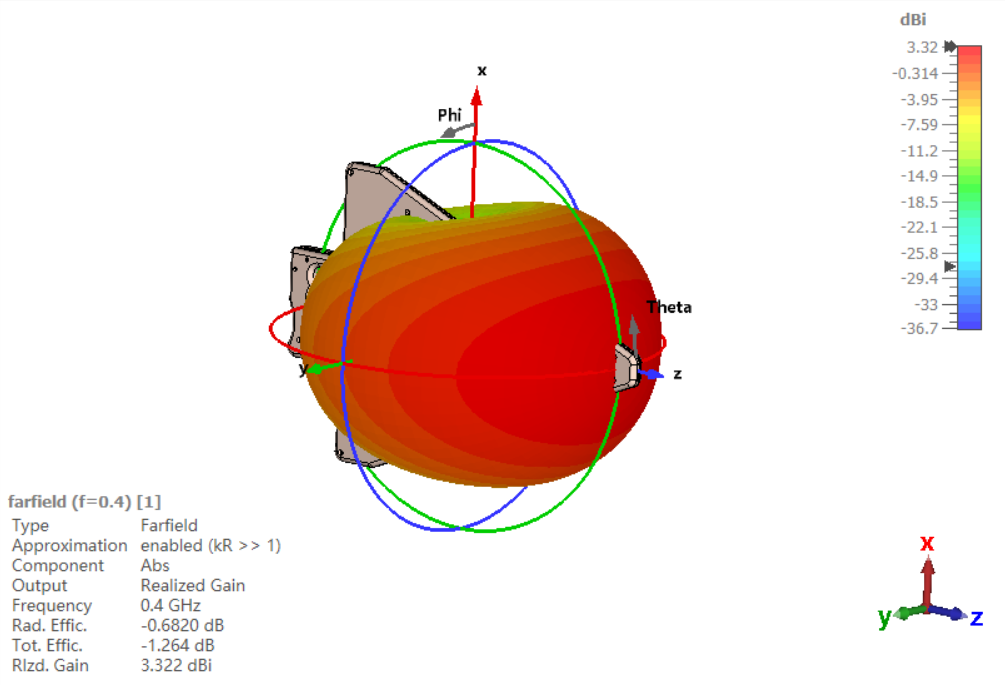

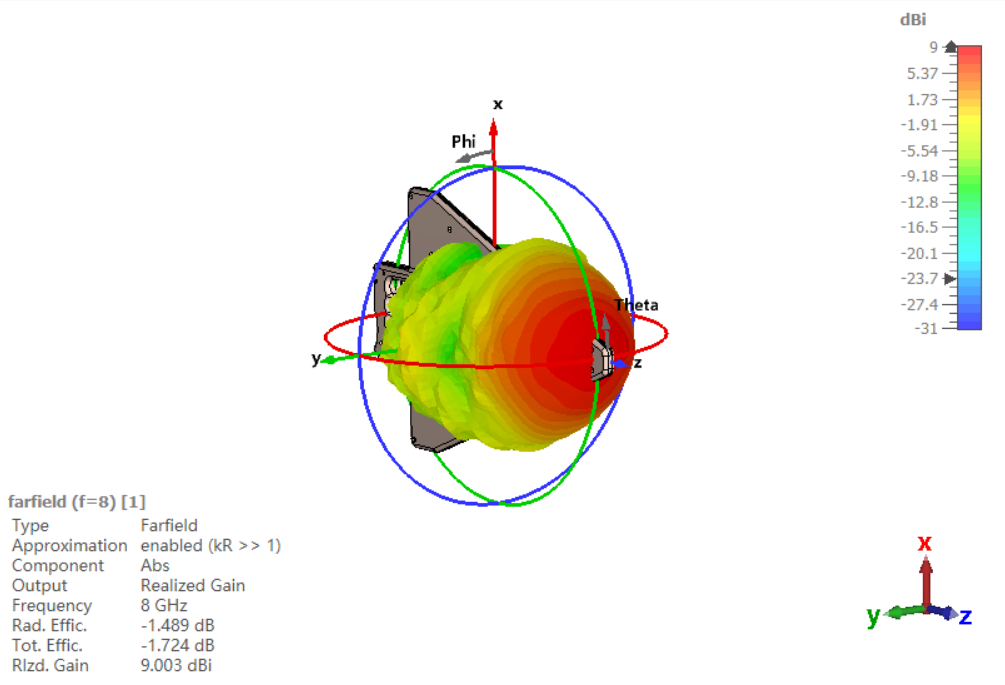

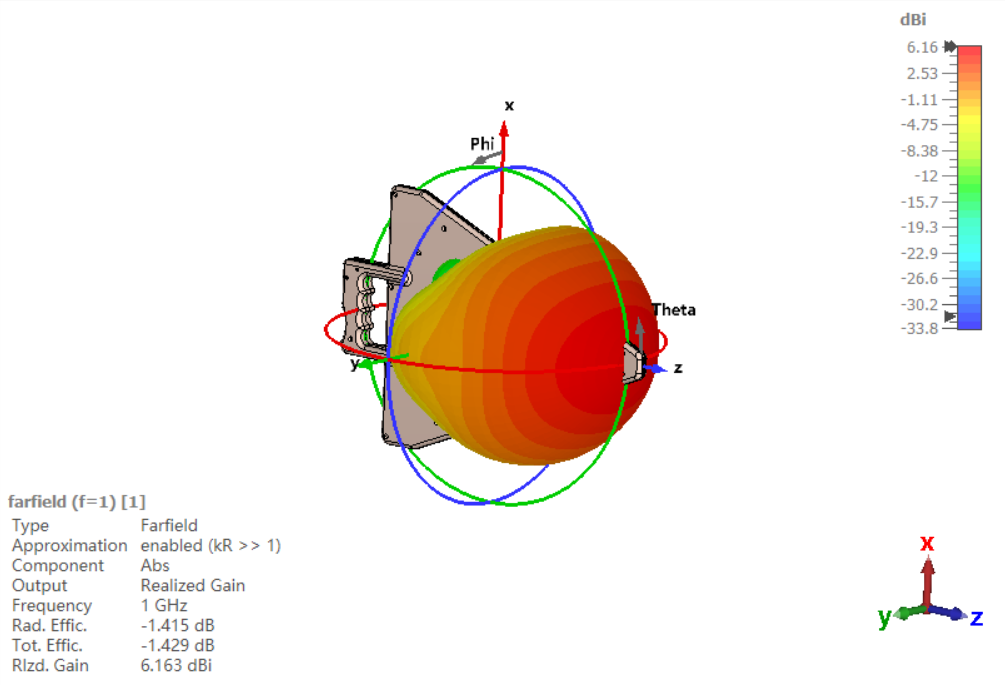

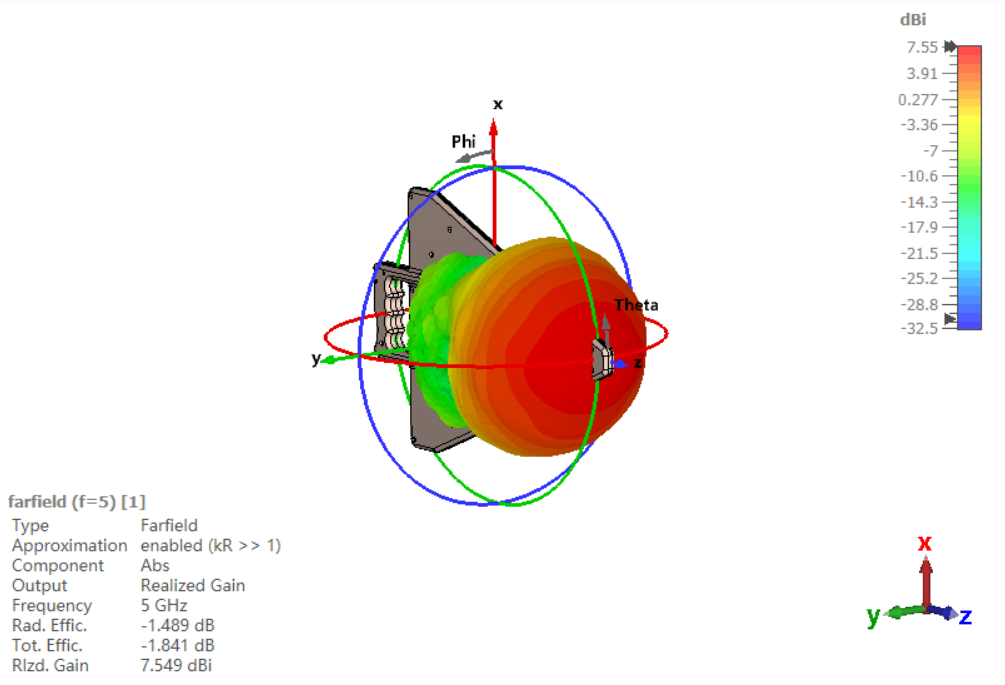

Leader-mw Mag-pattern
1
2
3
4
5
6
7
8
9
11
10
