LDDC-6/18-40NS-500W 500W High Power Dual Directional Coupler

Type:LDDC-6/18-40NS-500W

Frequency range:6-18Ghz

Nominal Coupling:40±1

Insertion Loss:0.8dB

Directivity:10dB

VSWR:1.5-1.7

Power:500W

Connecter:SMA

Send email to us Download as PDF

Product Detail

Product Tags

LEADER-MW

SPECIFICATION

Type No:LDDC-6/18-40N-500WHigh Power Dual Directional Coupler

No.	Parameter	Minimum	Typical	Maximum	Units
1	Frequency range	6		18	GHz
2	Nominal Coupling		40		dB
3	Coupling Accuracy			±1	dB
4	Coupling Sensitivity to Frequency				dB
5	Insertion Loss	0.6		0.8	dB
6	Directivity	10			dB
7	VSWR	1.5		1.7	-
8	Power	350		500	CW
9	Operating Temperature Range	-45		+85	˚C
10	Impedance	-	50	-	Ω

LEADER-MW

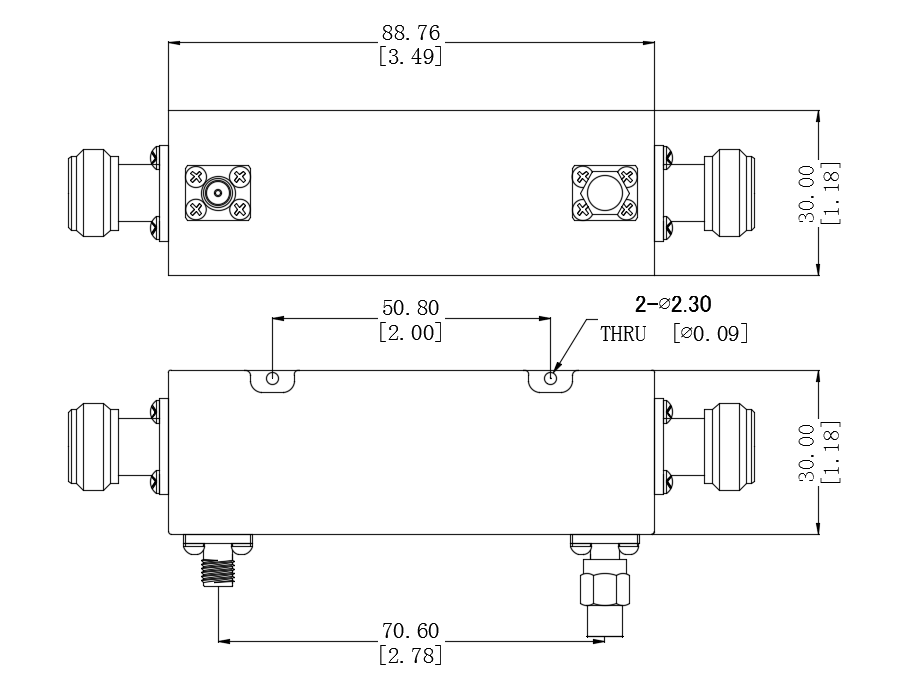

Outline Drawing

Outline Drawing:

All Dimensions in mm

All Connectors:N-Female,N-Male
