5-6Ghz C band 16 way power divider splitter combiner

Chengdu Leader Microwave Technology (Leader-MW) is a well-known Chinese manufacturer specializing in high-performance RF and microwave components. Their 5-6 GHz 16-way power divider/splitter/combiner is a passive component designed for C-band applications, offering high precision in signal distribution and summation.

1. Technical Overview

A 16-way power divider in the 5-6 GHz range typically utilizes a multi-stage Wilkinson design or a radial structure to ensure high isolation and phase stability.

• Frequency Range: 5000 MHz to 6000 MHz (C-band).
• Theoretical Split Loss: 10log10​(16)=12.04 dB.

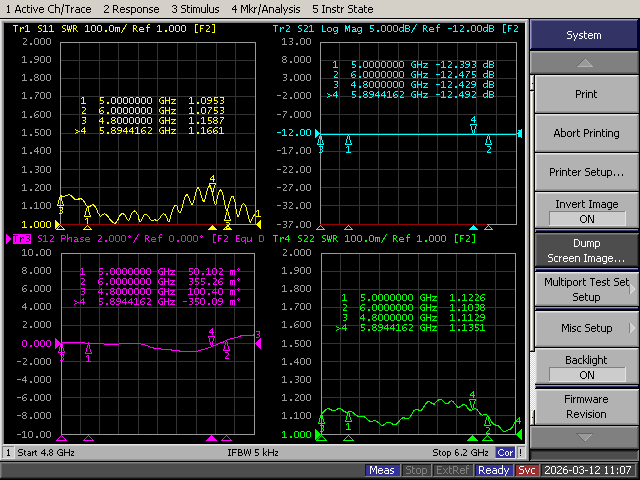

• Insertion Loss: 3.9dB (the theoretical 12.04 dB), depending on the specific model and housing material.

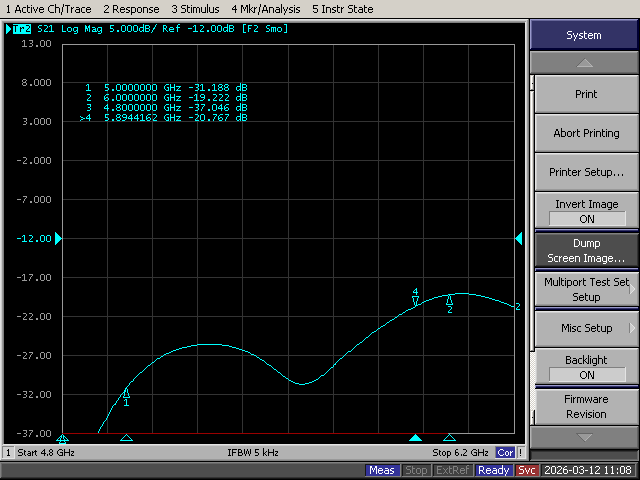

• Isolation: Typically ≥ 16 dB between output ports to prevent cross-talk.
• VSWR (Voltage Standing Wave Ratio): Generally ≤ 1.65:1, ensuring minimal signal reflection.
• Amplitude Balance: Usually within ± 1 dB.
• Phase Balance: Usually within ± 6° .

2. Key Features

• Bi-directional Functionality: It can function as a splitter (1 input to 16 outputs) or a combiner (16 inputs to 1 output).
• Connector Type: Most Leader-MW models for this frequency use SMA-Female connectors due to their reliability and performance up to 18 GHz.
• Power Handling: Designed to handle moderate power levels (typically 10W to 30W as a splitter), though high-power versions with heat sinks are available.

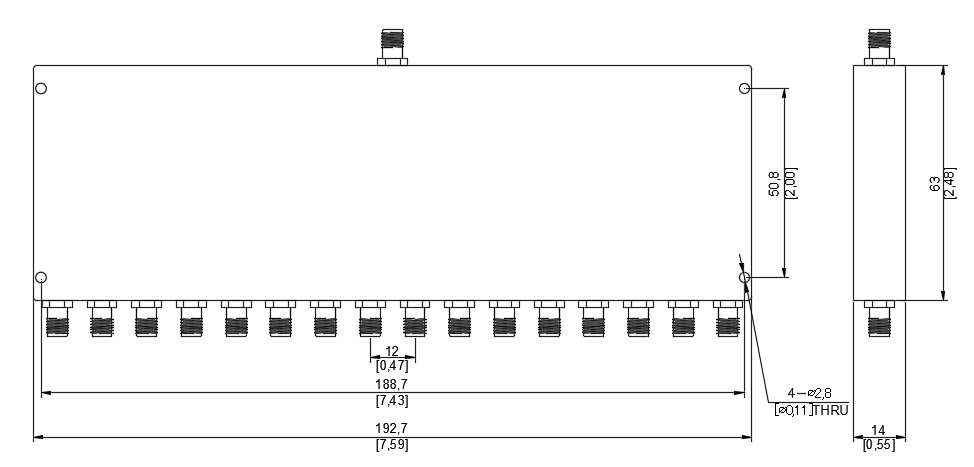

• Compact Housing: Usually constructed with aluminum alloy and finished with conductive oxidation or silver/gold plating for environmental durability and EMI shielding.

3. Common Applications

• Wireless Communication: Used in Wi-Fi 6/6E infrastructure and 5G small cell testing within the C-band.
• Radar Systems: Signal distribution for phased array antennas.
• Satellite Communications: Ground station signal processing.
• Laboratory Testing: Simultaneous testing of multiple RF devices or antennas.

4. About Chengdu Leader-MW

Chengdu Leader Microwave Technology Co., Ltd. is located in the "Microwave Valley" of China (Chengdu). They are known for:

• Customization capabilities (tailoring frequency, power, and connector types).
• Competitive pricing compared to Western brands like Mini-Circuits or Narda.
• Compliance with ISO9001 standards.
