3.5mm Male-3.5mm Male rf coaxial adapter
| Leader-mw | Introduction to 3.5MM male -3.5MM male Adapter |
The critical specification of 3.5mm male to 3.5mm male operational frequency range, extending up to 33 GHz. This high-frequency capability makes it indispensable in demanding RF and microwave applications where signal integrity above 30 GHz is paramount. 3.5mm male to 3.5mm male Achieving performance at these frequencies requires exceptional manufacturing precision and high-quality materials (typically stainless steel or beryllium copper for the body and center conductor) to ensure consistent 50-ohm impedance, minimal insertion loss, low Voltage Standing Wave Ratio (VSWR), and excellent phase stability.
| Leader-mw | specification |
| No. | Parameter | Minimum | Typical | Maximum | Units |
| 1 | Frequency range |
DC |
- |
33 |
GHz |
| 2 | Insertion Loss |
0.3 |
dB |
||
| 3 | VSWR | 1.2 | |||
| 4 | Impedance | 50Ω | |||
| 5 | Connecter |
3.5mm male |
|||
| 6 | Preferred finish colour |
SLIVER |
|||
| Leader-mw | Environmental Specifications |
| Operational Temperature | -30ºC~+60ºC |
| Storage Temperature | -50ºC~+85ºC |
| Vibration | 25gRMS (15 degrees 2KHz) endurance, 1 hour per axis |
| Humidity | 100% RH at 35ºc, 95%RH at 40ºc |
| Shock | 20G for 11msec half sine wave,3 axis both directions |
| Leader-mw | Mechanical Specifications |
| Housing | stainless steel 303F Passivated |
| Insulators | PEI |
| Contact: | gold plated beryllium bronze |
| Rohs | compliant |
| Weight | 0.10kg |

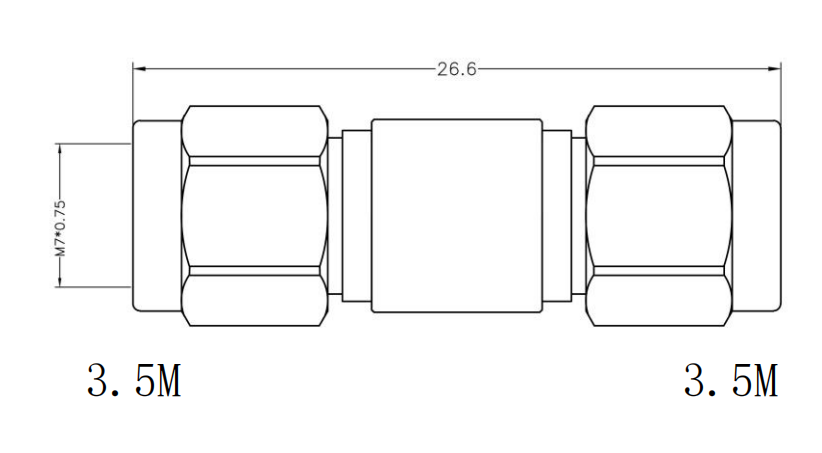

Outline Drawing:
All Dimensions in mm
Outline Tolerances ± 0.5(0.02)
Mounting Holes Tolerances ±0.2(0.008)
All Connectors: 3.5mm-male
| Leader-mw | Test Data |
