3.5mm female-3.5mm male rf coaxial adapter
| Leader-mw | Introduction to 3.5MM female -3.5MM male Adapter |
LEADER-MW 3.5mm Female to 3.5mm Female RF Coaxial Adapter rated up to 33 GHz:
This specialized coaxial adapter provides a seamless, low-loss connection between two devices or cables equipped with 3.5mm male connectors. Its defining feature is its female interface on both ends, designed to mate precisely with the corresponding male plugs. The 3.5mm connector interface itself is a robust, semi-precision type, larger and more durable than 2.92mm (K) but smaller than Type-N connectors.
| Leader-mw | specification |
| No. | Parameter | Minimum | Typical | Maximum | Units |
| 1 | Frequency range |
DC |
- |
33 |
GHz |
| 2 | Insertion Loss |
0.3 |
dB |
||
| 3 | VSWR | 1.2 | |||
| 4 | Impedance | 50Ω | |||
| 5 | Connecter |
3.5mm female -3.5mm male |
|||
| 6 | Preferred finish colour |
SLIVER |
|||
| Leader-mw | Environmental Specifications |
| Operational Temperature | -30ºC~+60ºC |
| Storage Temperature | -50ºC~+85ºC |
| Vibration | 25gRMS (15 degrees 2KHz) endurance, 1 hour per axis |
| Humidity | 100% RH at 35ºc, 95%RH at 40ºc |
| Shock | 20G for 11msec half sine wave,3 axis both directions |
| Leader-mw | Mechanical Specifications |
| Housing | stainless steel 303F Passivated |
| Insulators | PEI |
| Contact: | gold plated beryllium bronze |
| Rohs | compliant |
| Weight | 0.10kg |

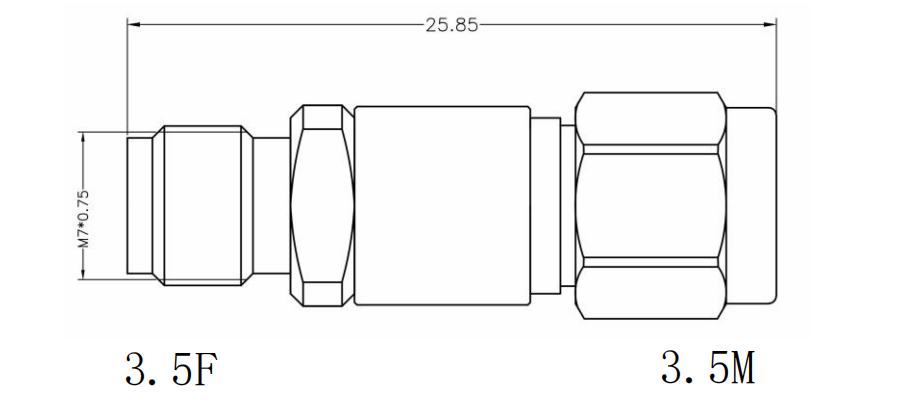

Outline Drawing:
All Dimensions in mm
Outline Tolerances ± 0.5(0.02)
Mounting Holes Tolerances ±0.2(0.008)
All Connectors: 3.5mm female -3.5mm male
| Leader-mw | Test Data |
