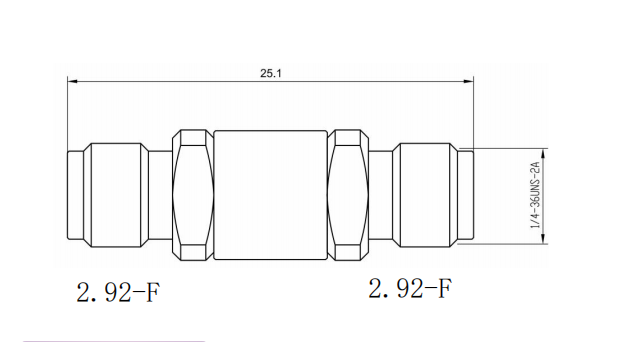

2.92mm Female to 2.92mm Female RF Adapter

2.92mm Female to 2.92 Female Coaxial Adapter is a precision microwave component engineered to connect two cables or instruments with male 2.92mm (K-type) connectors. Operating reliably up to 40 GHz, it maintains signal integrity in high-frequency test, measurement, and communication systems like 5G, satellite, aerospace, and radar.

Connector Standard: Compliant with IEC 61169-38 (2.92mm/K), offering backward compatibility with 3.5mm and SMA connectors while supporting higher frequencies.
Gender Configuration: Female (jack) interfaces on both ends, designed to accept male plugs (pins).
Performance: Optimized for minimal insertion loss (<0.4 dB typical) and low Voltage Standing Wave Ratio (VSWR <1.2:1) at 40 GHz, ensuring accurate signal transmission.
Construction Precision-machined center contacts (beryllium copper or phosphor bronze) with gold plating for low resistance and corrosion resistance. The outer body (stainless steel/brass) and PTFE dielectric ensure stable 50 Ω impedance.
Applications: Critical in VNA calibration, ATE systems, antenna testing, and RF research where repeatable, low-loss interconnections are essential.
