2.4mm Female to 2.4mm Female RF Adapter
| Leader-mw | Introduction to 2.4mm Female-2.4mm Female Adapter |
2.4mm Female to 2.4mm Female Coaxial Adapter is a precision microwave component designed to connect two cables or devices with male 2.4mm connectors. Operating reliably at frequencies up to 50 GHz, it facilitates signal continuity in high-frequency test setups, research systems, and advanced communication applications like 5G, satellite, and radar.
Applications: Essential in calibration labs, antenna measurements, semiconductor testing, and RF subsystems requiring repeatable, low-loss interconnects.
This adapter enables flexible configurations in complex setups but demands careful handling to preserve its mechanical tolerance and electrical specs at extreme frequencies.
| Leader-mw | specification |
| No. | Parameter | Minimum | Typical | Maximum | Units |
| 1 | Frequency range |
DC |
- |
50 |
GHz |
| 2 | Insertion Loss |
0.5 |
dB |
||
| 3 | VSWR | 1.25 | |||
| 4 | Impedance | 50Ω | |||
| 5 | Connecter |
2.4mm F-2.4mm F |
|||
| 6 | Preferred finish colour |
SLIVER |
|||
| Leader-mw | Environmental Specifications |
| Operational Temperature | -30ºC~+60ºC |
| Storage Temperature | -50ºC~+85ºC |
| Vibration | 25gRMS (15 degrees 2KHz) endurance, 1 hour per axis |
| Humidity | 100% RH at 35ºc, 95%RH at 40ºc |
| Shock | 20G for 11msec half sine wave,3 axis both directions |
| Leader-mw | Mechanical Specifications |
| Housing | stainless steel 303F Passivated |
| Insulators | PEI |
| Contact: | gold plated beryllium bronze |
| Rohs | compliant |
| Weight | 50g |

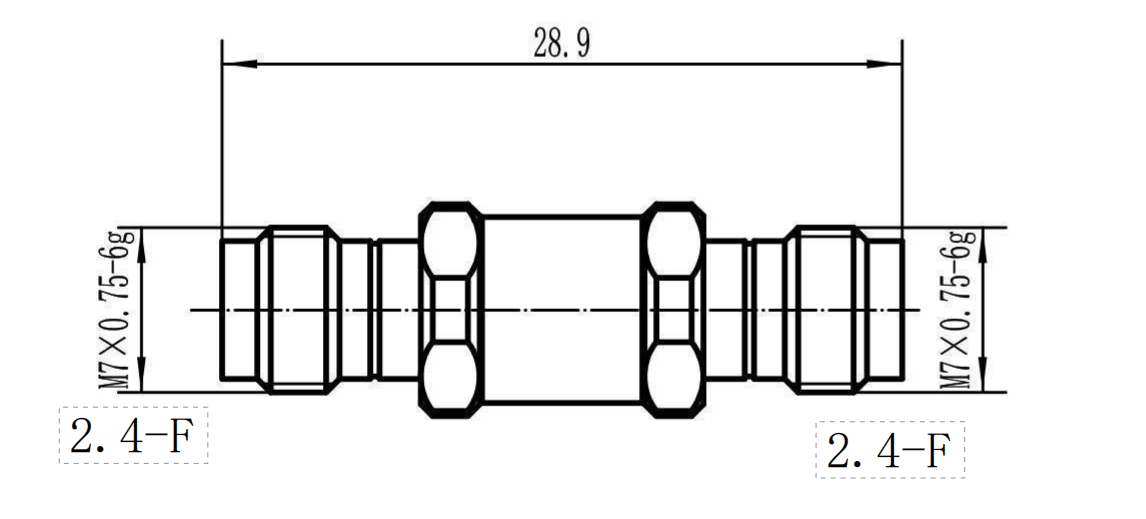

Outline Drawing:
All Dimensions in mm
Outline Tolerances ± 0.5(0.02)
Mounting Holes Tolerances ±0.2(0.008)
All Connectors: 2.4mm-Female
| Leader-mw | Test Data |
